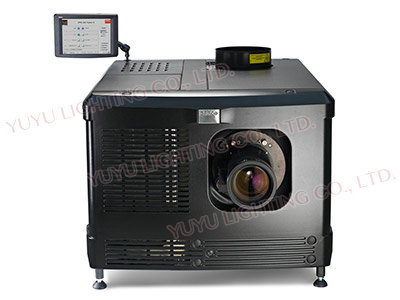

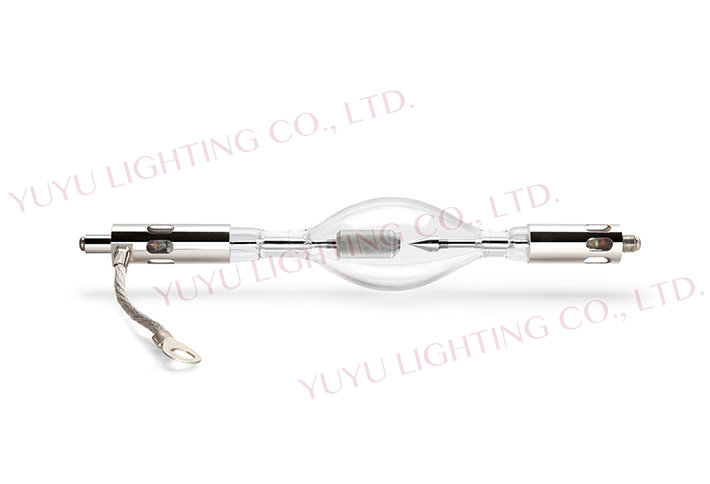

BARCO 65BA

No.

Item

Standard request

1

Overall length

415 mm

2

Lamp length

375 mm

3

Bulb diameter

70 mm

4

LCL

158 mm

5

Lamp voltage

40 V

6

Lamp current

160 A

7

Luminous flux

300000 lm

8

Average life

500 h

9

Appearance

No devitrification and nigrescence in bulb；smooth spot welding；clear mark.

10

Lamp base

Cathode: SFc30-14
Anode: SFaX30-14
Bonded firmly in the role of the torsion torque 1N.M no loosening of the phenomenon

11

Axiality error

≤4.5

12

Start-up

Lamp can be able to start in 2s

13

Impulse discharge current

Lamp can withstand 110% rated current to maintain 1min without damaging

14

Iliumination intensity

Per unit area of the received flux

15

Anode side Cable

155±5mm
Red copper(99.7%), density:7.83g/ cm3,
melting point:1083℃，Non-magnetism

16

Cooling requirements

forced cooling / fan
Min. air flow velocity around discharge vessel : 15m/s
