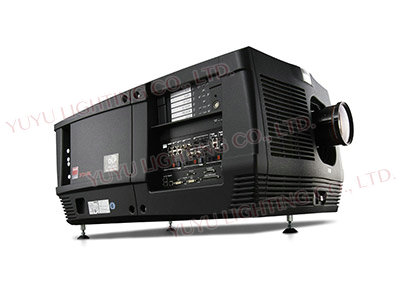

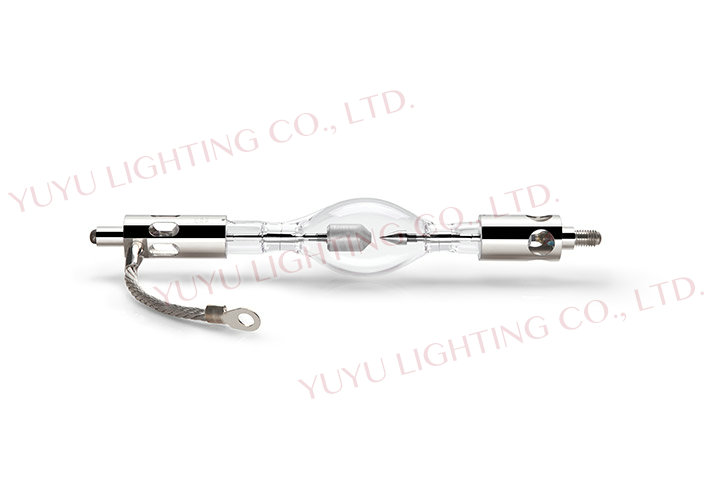

BARCO 3kw DHP

No.

Item

Standard request

1

Overall length  A1

345 mm

2

Lamp length   A2

295 mm

3

Bulb diameter  B

55 mm

4

LCL    C

123 mm

5

Lamp voltage

30 V

6

Lamp current

100 A

7

Luminous flux

140000 lm

8

Average life

1900 h

9

Appearance

No devitrification and nigrescence in bulb；smooth spot welding；clear mark.

10

Lamp base

Cathode: SFc27-16/45
Anode: SFaX27-14x80
Bonded firmly in the role of the torsion torque 1N.M no loosening of the phenomenon

11

Axiality error

≤4.5

12

Start-up

Lamp can be able to start in 2s

13

Impulse discharge current

Lamp can withstand 110% rated current to maintain 1min without damaging

14

Iliumination intensity

Per unit area of the received flux

15

Anode side Cable

155±5mm
Red copper(99.7%), density:7.83g/ cm3,
melting point:1083℃，Non-magnetism

16

Cooling requirements

forced cooling / fan
Min. air flow velocity around discharge vessel : 10m/s
