BARCO 2kw DHP

No.

Item

Standard request

1

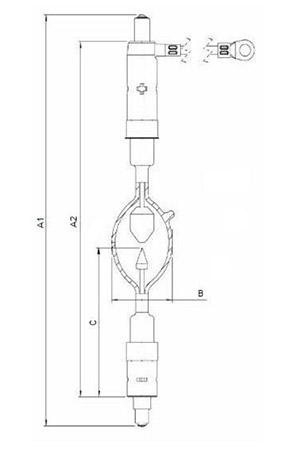

Overall length

345 mm

2

Lamp length

295 mm

3

Bulb diameter

55 mm

4

LCL

123 mm

5

Lamp voltage

28 V

6

Lamp current

80 A

7

Luminous flux

80000 lm

8

Average life

2000 h

9

Appearance

No devitrification and nigrescence in bulb；smooth spot welding；clear mark.

10

Lamp base

Cathode: SFc27-16/45

Anode: SFaX27-14x80

Bonded firmly in the role of the torsion torque 1N.M no loosening of the phenomenon

11

Axiality error

≤4.5

12

Start-up

Lamp can be able to start in 2s

13

Impulse discharge current

Lamp can withstand 110% rated current to maintain 1min without damaging

14

Iliumination intensity

Per unit area of the received flux

15

Anode side Cable

155±5mm

Red copper(99.7%), density:7.83g/ cm3,

melting point:1083℃，Non-magnetism

16

Cooling requirements

forced cooling / fan

Min. air flow velocity around discharge vessel : 8m/s
